Swipe action is not performing on WMA Android app

Issues/Bugs
1

Hi Team,

we are using leapwork mobile automation and through that we tried to perform the swipe right operation on the WMA app

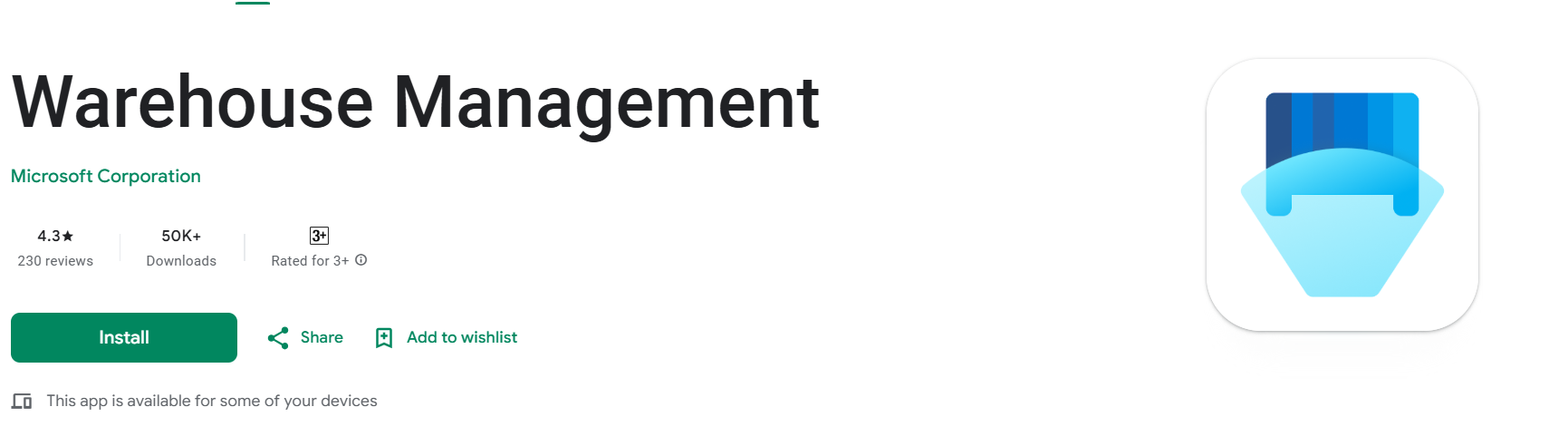

image1731×481 60.6 KB

Steps to perform.

Open the app

click on demo mode

click on Purchase Receive, in this window we are performing swipe right .

Below is the code which we are using

var inputDevice = new PointerInputDevice(PointerKind.Touch, MobileConstants.SwipeTouch);
var swipeActionSequence = new ActionSequence(inputDevice, 0);
var swipeDuration = GetSwipeDuration();

var center = GetElementCenter();
executor.Log.Debug($“Element center calculated at ({center.X}, {center.Y}).”);

var destination = GetTouchDestination(center);
executor.Log.Debug($“Touch destination calculated at ({destination.X}, {destination.Y}).”);

//Creating swipe sequence
swipeActionSequence.AddAction(inputDevice.CreatePointerMove(CoordinateOrigin.Viewport, center.X, center.Y, TimeSpan.Zero));
swipeActionSequence.AddAction(inputDevice.CreatePointerDown(PointerButton.TouchContact));

swipeActionSequence.AddAction(inputDevice.CreatePause(TimeSpan.FromMilliseconds(MoveToDelayMilliseconds)));
swipeActionSequence.AddAction(inputDevice.CreatePointerMove(CoordinateOrigin.Viewport, destination.X, destination.Y, swipeDuration));
swipeActionSequence.AddAction(inputDevice.CreatePointerUp(PointerButton.TouchContact));

//Performing swipe action sequence
executor.Driver.PerformActions(new List { swipeActionSequence });
executor.Log.Debug(“Swipe actions performed successfully.”);

here for swipe, we tried to pass custom swipe value to 50, sometimes it works as expectd and sometimes it does not work.

Kindly assist me.

FYI @mykola-mokhnach @Aleksei @wreed

2

try:

1 make sure animation stopped before swipe. e.g. disable animation on device or in driver capabilities or add delay after previours swipe happens.

2 enable see touches and coordinates on Android device and check when and how actually swipe happens.

3 when swipe fails → try manually with same touches. I often saw that some app areas are not sensibly and swipe just not starting.

3

Hi, thank you for the reply. The problem is that out of 10 times, it swipes perfectly fine for 3-4 times. but not able to get to know why it fails rest of the time. I tried to compare the coordinates too, that are also same but still fails

4

Try to apply a mobile gesture as a possible alternative: appium-uiautomator2-driver/docs/android-mobile-gestures.md at master · appium/appium-uiautomator2-driver · GitHub

5

also can try pure UIAutomator2 commands → https://developer.android.com/reference/androidx/test/uiautomator/UiScrollable
